design.json

The Basics

BSI CX 22.0 introduced the design.json file, which replaces the previously used design.properties file. Information on the legacy design.properties can be found in the CX design documentation for CX version 1.3 or earlier.

If you are using the [designbuild], the design.json file is generated automatically and no manual adjustments should be made to this file.

Metadata for a design is defined in the design.json file. It contains general information on the design, such as the name and author, as well as element specific information, such as with which description and icon the elements are to be displayed to the right of the editor.

Specifying design meta data

{
  "title": "My Customer Design",
  "author": "John Doe, Doe Design Agency"
}

Group information, content element specific entries, configuration capabilities for styles (allowing you to mixin different CSS styles or adding certain features using JavaScript) as well as instructions on how to customize the rich text editor experience can be found in the subsequent chapters.

Example of a fully featured design.json file

{
  "REM000": "-------------------- Metadata --------------------",
  "title": "My Customer Design",
  "author": "John Doe, Doe Design Agency",
  "schemaVersion": "22.0",
  "defaultLocale": "en",
  "REM001": "-------------------- Content-Elements, -Groups and -Parts --------------------",
  "contentElementGroups": [
    {
      "groupId": "buttons-and-links",
      "label": "Buttons & Links",
      "contentElements": [
        {
          "elementId": "button",
          "label": "Button",
          "icon": "megaphone",
          "file": "content-elements/button.html",
          "parts": [
            {
              "partId": "link",
              "label": "Button"
            }
          ],
          "styleConfigs": [
            "background-color"
          ]
        }
      ]
    },
    {
      "groupId": "text-and-images",
      "label": "Text & Images",
      "contentElements": [
        {
          "elementId": "text",
          "label": "Text",
          "icon": "text",
          "file": "content-elements/text.html",
          "parts": [
            {
              "partId": "formatted-text",
              "label": "Text",
              "htmlEditorConfig": "custom"

            }
          ]
        }
      ]
    }
  ],
  "REM002": "-------------------- Style Configs --------------------",
  "styleConfigs": {
    "background-color": {
      "label": "Background color",
      "styles": [
        {
          "styleId": "background-color-green",
          "label": "Green",
          "cssClass": "green-background"
        },
        {
          "styleId": "background-color-red",
          "label": "Red",
          "cssClass": "red-background"
        }
      ]
    }
  },
  "REM003": "-------------------- HTML Editor Configs --------------------",
  "htmlEditorConfigs": {
    "custom": {
      "features": [
        "bold",
        "italic",
        "underline",
        "textColor"
      ],
        "textColors": [
          "#16616d",
          "#383e42"
      ]
    }
  }
}

Content Element Groups

Each content element is assigned to a group. Add an entry to the design.json file to specify an identifier and a display name for each group element.

Giving groups clearly identifiable descriptions

"contentElementGroups": [
  {
    "groupId": "buttons-and-links",
    "label": "Buttons & Links"
  },
  {
    "groupId": "text-and-images",
    "label": "Text & Images"
  }
]

Content Elements

For each content element the following entries should be defined in order to get a clean user experience. The element identifier is the value of the data-bsi-element attribute, that is defined in the corresponding html file.

Important metadata for content elements

"contentElements": [
  {
    "elementId": "logo",
    "label": "Cooperate Logo",
    "description": "Visualize your corporate logo",
    "icon": "image",
    "file": "content-elements/logo.html",
    "parts": [
      {
        "partId": "image",
        "label": "Mobile image for Logo"
      }
    ]
  }
]

Refer to the following illustration to pick a value for icon.

Figure 1. icon identifier reference

For element parts, labels can be defined. Those are then used as section headings while editing a content element in the content editor. partId is the data-bsi-element-part value of the element part.

Handlebars Content Elements

BSI CX 25/1

If the schema version is set to 25.1, this enables the new Handlebars content element feature.

Metadata for a Handlebars content element

{
  "elementId": "paragraph",
  "type": "template-element", (1)
  "file": "content-elements/content/paragraph.hbs",
  "contextFile": "content-elements/content/paragraph.json", (2)
  "icon": "heading",
  "label": "Paragraph",
  "templateParts": [ (3)
    {
      "partId": "formatted-text",
      "partContextId": "paragraph", (4)
      "label": "Paragraph-Text"
    }
  ]
}

1	The type attribute is mandatory for Handlebars content elements and needs to be set to `template-element`. The other values are optional and include `html-element` and `pre-defined-include`.
2	In addition to the source file, Handlebars elements need a context-file containing the variables supplied by the Template Parts.
3	Instead of a list of Element Parts (`parts`), Handlebars elements only have a list of Template Parts.
4	Context-ID that is used to refer to the Template Part in the template.

Special Case: Composite Elements

Composites for Handlebars Elements have to be declared separately, as such:

{
  "elementId": "two-column-with-content",
  "type": "template-element",
  "composite": true, (1)
  "file": "content-elements/content/two-column-with-content.hbs",
  "contextFile": "content-elements/content/two-column-with-content.json",
  "icon": "two-columns",
  "label": "Zweispalter mit Beispielinhalt"
} (2)

1	The new attribute `composite` needs to be set to `true` explicitly.
2	No Template Parts are explicitly set. They are defined in the non-composite content elements that make up the composite.

Every content element used in a composite needs to exist as a stand-alone element. If the stand-alone element should not be visible in the content editor, it can be hidden using "hidden": true.

A composite element needs to be built-up like building design.hbs: Every constituent element needs a data-bsi-context-scope and this scope is then used to assemble the element context.

Archiving Content Elements

As of BSI CX 23/2, it is possible to archive content elements in a design without losing these elements in an existing content after updating the design.

To do so, the archived attribute of corresponding elements are set to true in the design.json file.

Archived elements are still available in the design, but are no longer accessible in the content editor in the selection list of elements. Therefore it is no longer possible to insert them into a content. If they are already contained in a content, they can still be edited and moved, but can no longer be copied or pasted.

Marking a content element as archived

"contentElements": [
  {
    "elementId": "button",
    "label": "Button",
    "icon": "megaphone",
    "file": "content-elements/button.html",
    "archived": true
  }
]

Design Schema Version

The schema version is defined by the property schemaVersion in the design.json file.

This property is used to distinguish different versions of the JSON schema used for designs. Which means a new version might support additional JSON properties, that do not exist in older versions.

The schema version is also used to control behavior. The BSI CX application might interpret a new version in a different way than older versions. For instance, it may use different default values for undefined properties.

Not every new BSI CX release defines a new schema version. The following table is a list of supported schema versions, up to the latest release.

Schema Version	Description
1.0	Initial version introduced with BSI CX 1.3. At this point, only used for website designs.
22.0	Introduced with BSI CX 22.0. Successor of the `design.properties` file, used for all content types.
25.1	Introduced with BSI CX 25/1. Added support for Handlebars Content Elements.
26.1	Introduced with BSI CX 26/1. Added support for HTML sanitization and defaults for strict security.

Styles

CX 23.2 introduced a new json format for the definition of styles. However, the previous format is still supported. A design for CX 22.0 or earlier therefore does not need to be migrated to the new styles format.

By defining styles for a certain content element, its characteristics can be controlled. By using styles to make a content element configurable, it is not necessary to implement an additional content element for an almost identical content element. A requirement to implement a button in two different colors (red and green) would therefore be implemented by creating a button content element with two styles: red and green. Styles are only defined once, and each element can have 0 to n style capabilities. Each style capability will then be transformed to a dropdown in the editing dialog of a content element, where the specific style can be applied to a content element.

styles visualized as dropdown in the content editor

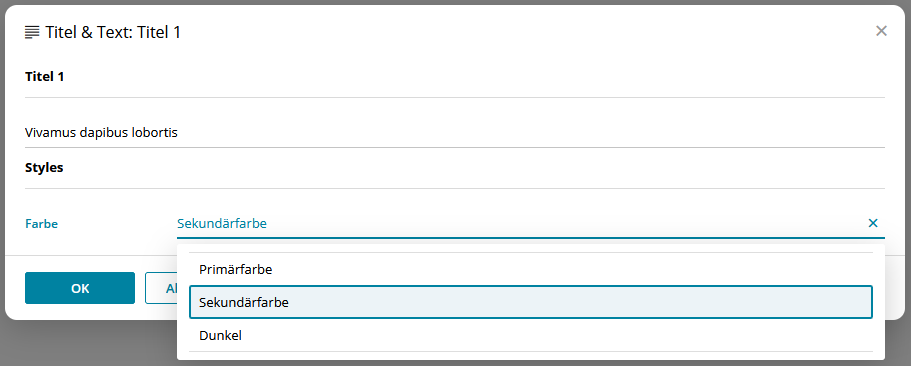

Figure 2. example of a style dropdown

Styles can be defined in two ways:

CSS classes: One cssClass can be defined for each style option. If a style option is selected, the corresponding CSS class is added to the content element at the level of the data-bsi-element attribute.
DOM manipulations: One or more domManipulations can be defined per style option using a selector, attribute and value. When a style option is selected, DOM elements within the content element are selected using the selector and the value of the attributes, e.g. an inline style (style), a CSS class (class) or other attributes (e.g. align) are manipulated.

Defining style capabilities

"styleConfigs": {
  "background-color": {
    "label": "Background color",
    "styles": [
      {
        "styleId": "background-color-green",
        "label": "Green",
        "cssClass": "green-background",  (1)
        "domManipulations": [ (2)
          {
            "selector": "div.bg-color",
            "attribute": "style",
            "value": "background-color: #18a92b; color: #ffffff;"
          },
          {
            "selector": "div.bg-color h1.heading",
            "attribute": "align",
            "value": "center"
          }
        ]
      },
      {
        "styleId": "background-color-red",
        "label": "Red",
        "cssClass": "red-background",
        "domManipulations": [
          {
            "selector": "div.bg-color",
            "attribute": "style",
            "value": "background-color: #a21d1d; color: #ffffff;"
          },
          {
            "selector": "div.bg-color p",
            "attribute": "class",
            "value": "text-on-red-bg"
          }
        ]
      }
    ]
  }
}

1	Defining a `cssClass`
2	Defining of `domManipulations`

When using styles, please consider as follows:

1 to n styles can be defined to appear as individual dropdowns in the editor, where one style option can be selected.
A style option can have 1 to n domManipulations but only 1 cssClass.
cssClass and domManipulations can be combined or used individually. styleId must always be set.
When a DOM manipulation is created with the style or class attribute, the value of the selected style option is added to the list of values currently present on the element. Only the values defined in the corresponding, unselected style options are overwritten. Independent values remain unchanged. In contrast, when using other attributes, e.g. width, the value is not appended when the style option is selected, but will instead be overwritten.

It is strongly recommended that styles in email templates are not set via CSS classes, but via DOM manipulations with the style attribute, as many email clients still require certain styles to be set via inline styles.

Useful for the development of e-mail templates that are optimized for MS Outlook: MSO conditional comments can also be selected and manipulated with the DOM manipulation selector.

The following shows how a style can be applied on a content element using cssClass. If a style is preselected on an element, it is sufficient to add the desired CSS class to the respective element in the HTML.

Assigning style capabilities to content elements

"contentElements": [
  {
    "elementId": "button",
    "label": "Button",
    "styleConfigs": [
      "background-color",
      "border-color",
      "text-color"
    ]
  }
]

CSS class for a style

.colored-button.green-background { background-color: green; }
.colored-button.red-background { background-color: red; }

How styles are applied on content elements

<button data-bsi-element="button" class="colored-button green-background"></button>

Configuration capabilities of the Rich Text Editor

By defining a content element part of type formatted-text, a fully featured rich text editor will be available to the users of the content editor. The built-in WYSIWYG rich text editor is powered by Froala. BSI allows to customize a subset of Froala features directly out of a design. In order to do so, a configuration section in the design.json can be used to customize the features of the rich text editor. Each element part of type formatted-text can have its own custom list of features, although in most cases one feature definition is shared among different content elements.

A typical, simple rich text editor configuration will look like this:

Rich text editor configuration example

"htmlEditorConfigs": {
  "my-config": {
    "features": [
        "bold",
        "italic",
        "underline",
        "textColor"
    ],
      "textColors": [
        "#ff00cc",
        "#aabbcc"
    ]
  }
}

The above configuration (named my-config) needs to be assigned to a concrete element part in order to apply the customizations:

Applying an HTML editor configuration on a content element 'text'

"contentElements": [
  {
    "elementId": "text",
    "label": "Text",
    "parts": [
      {
        "partId": "formatted-text",
        "label": "Text",
        "htmlEditorConfig": "my-config"

      }
    ]
  }
]

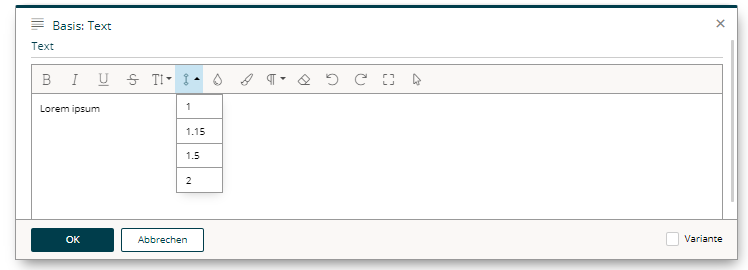

simple configuration from above in action

The entire list of supported configuration options is documented in the subsequent chapters.

Feature list

The most important configuration option is the list of features that will be shown in the WYSIWYG editor.

If one wants to support bold, italic, and underlined text, the definition for doing so would be like this:

Feature list example

"htmlEditorConfigs": {
  "my-config": {
    "features": [
        "bold",
        "italic",
        "underline"
    ]
  }
}

Each key in the list below (indicated in bold) identifies a certain feature, which is then displayed as a separate button in the editor. The sequence is irrelevant and does not affect the display order, as the display order is given by the server-side implementation.

The following features are available:

bold	the text can be formatted in bold.
italic	the text can be formatted in italics.
underline	the text can be underlined.
strikeThrough	the text can be displayed with a line through the center.
subscript	the text can be displayed as a _subscript.
superscript	the text can be displayed as a ^superscript.
fontSize	the font size can be changed based on the font-sizes value list.
lineHeight	the line height can be changed based on the line-heights value list.
textColor	the text color can be changed based on the text-colors value list.
backgroundColor	the background color can be changed based on the background-colors value list.
alignLeft	the text can be left aligned.
alignCenter	the text can be centered.
alignRight	the text can be right aligned.
alignJustify	the text can be justified (As most browsers are terrible in handling justified text properly, we recommend to not enable this feature).
formatOL	the text can be displayed as an organized list.
formatUL	the text can be displayed as an unorganized list.
outdent	the text can be outdented (useful for sub-lists).
indent	the text can be indented (useful for sub-lists).
paragraphFormat	changes the format of the paragraph based on the formats value list.
quote	display the text as a quote.
specialCharacters	inserts special characters.
emoticons	inserts emoji.
insertLink	permits the immediate insertion of links without having to use a wildcard.
html	displays and edit the HTML of the text.
help	displays Help.

In addition, the following features are always displayed in the editor and must therefore not be listed separately:

clearFormatting	clears all formatting from the selected text.
undo	undoes the change.
redo	redoes the change.
fullscreen	displays the editor in full screen mode.
selectAll	selects the entire text in the editor.

Our experience has shown that these features are useful in the vast majority of cases and that the editing experience would be significantly affected without them.

Value Lists

A list of values that will be shown in the editor can be defined for certain features (e.g. the list of colors when the font color feature is active).

An example using configuration with different value lists set

"htmlEditorConfigs": {
  "my-extended-config": {
    "features": [
      "bold",
      "italic",
      "underline"
    ],
    "textColors": [
      "#16616d",
      "#ff7d00",
      "#383e42"
    ],
    "backgroundColors": [
      "#ffffff",
      "#383e42"
    ],
    "formats": [
      "p",
      "h1",
      "h2",
      "pre"
    ],
    "fontSizes": [
      12,
      16,
      24
    ],
    "fontSizeUnit": "px",
    "fontSizeDefault": 16,
    "lineHeights": [
      1,
      1.15,
      1.5,
      2
    ],
    "enter": "p"
  }
}

Colors

To customize the color picker for textColor and backgroundColor, provide a list of colors as follows:

textColor example

"textColors": [
  "#16616d",
  "#ff7d00",
  "#383e42"
]

backgroundColor example

"backgroundColors": [
  "#ffffff",
  "#383e42"
]

Paragraph formats

Paragraph formatting and headings can be configured as well. This may be customized through the formats value list, which will only have an effect if the feature paragraphFormat is active.

formats example

"formats": [
  "p",
  "h1",
  "h2",
  "pre"
]

The following formats can be provided:

p	for an html paragraph (`<p>`)
h1	for an html H1 title (`<h1>`)
h2	`<h2>`
h3	`<h3>`
h4	`<h4>`
h5	`<h5>`
h6	`<h6>`
pre	for preformatted text (`<pre>`)

Line heights

To customize the lineHeight value list, provide a list of heights in percentages, comma separated. The line height values define the factor by which factor the current line height is multiplied based on the font size used.

lineHeight example

"lineHeights": [
  1,
  1.15,
  1.5,
  2
]

Entry mode

By defining the entry mode (enter), you define what happens in the editor when the kbd:[Enter] key on your keyboard is pressed. The following options are available:

p	to enclose the text with a paragraph (`<p>`)
div	to enclose the text with a `<div>` tag
br	to simply insert a `<br>` tag for a line break

In p and div modes, there is the option to force a simple line break with kbd:[Shift + Enter]. This will add <br> without immediately ending the block and starting a new one.

enter mode example

"enter": "div"

px	Pixels
em	Relative to font size of the parent
rem	Relative to font size of the root element
pt	Points
cm	Centimeters
mm	Millimeters

design.json

The Basics

Content Element Groups

Content Elements

Handlebars Content Elements

Special Case: Composite Elements

Archiving Content Elements

Design Schema Version

Styles

Configuration capabilities of the Rich Text Editor

Feature list

Value Lists

Colors

Paragraph formats

Line heights

Font size

Entry mode
