Content Elements and Parts

The part plain-text can be applied to any HTML element that can contain text. The text is inserted within the element. The element must not have children with other content element parts (content is removed). A single-line text field without formatting is available as the editor.

The part formatted-text can be applied to any HTML element that can contain text. The element must not have children with other content element parts (content is removed). The rich text field with a limited number of formatting options is available as an editor. For more information about the available configuration options see chapter [rich-text-editor].

The html part can be applied to any HTML element. The code is inserted within the element. The element must not have children with other content element parts (content is removed). A text field is used as the editor. HTML can be written directly into this field.

The video part can be applied to any block level HTML element. This part can be used to display information and thumbnails of external videos. It can also be used to embed external videos. Within the element, various elements can be used as placeholders:

The following external video providers are supported:

Be aware that there are two kinds of URLs involved: One is the link to the video platform itself for the href attribute on the <a> tag and there is the embedded URL for the <iframe> player. In the case of YouTube https://www.youtube.com/watch?v=YpnFs4aBLQA is the link to the video platform. The corresponding embedded URL would be https://www.youtube.com/embed/YpnFs4aBLQA. If you want to provide sample content for your element you may have to fill both URLs in the right tag. The following listing illustrates the use of sample content for a simple video element:

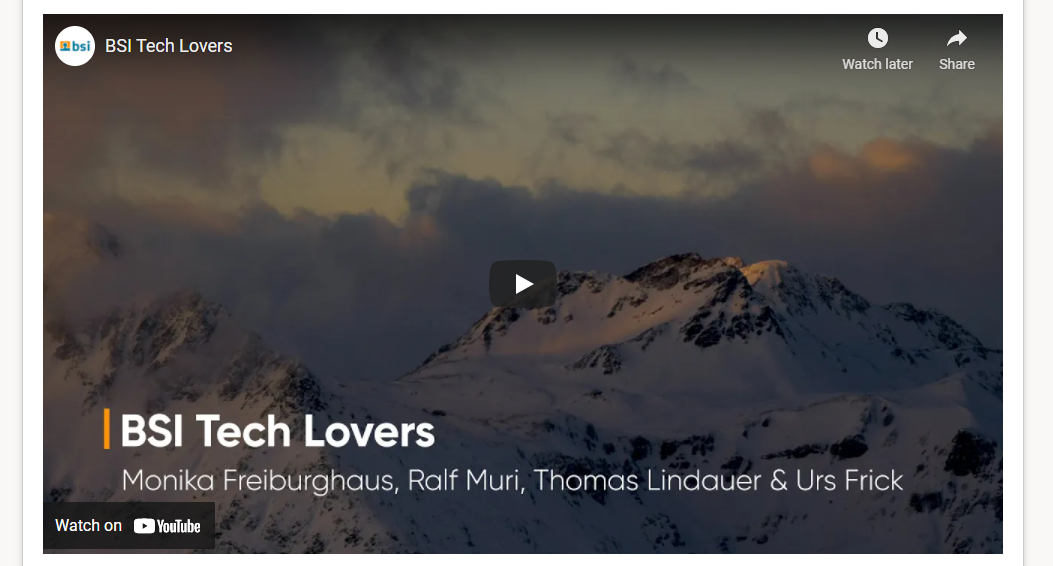

This results in the following content element:

A more complex video element would be the following:

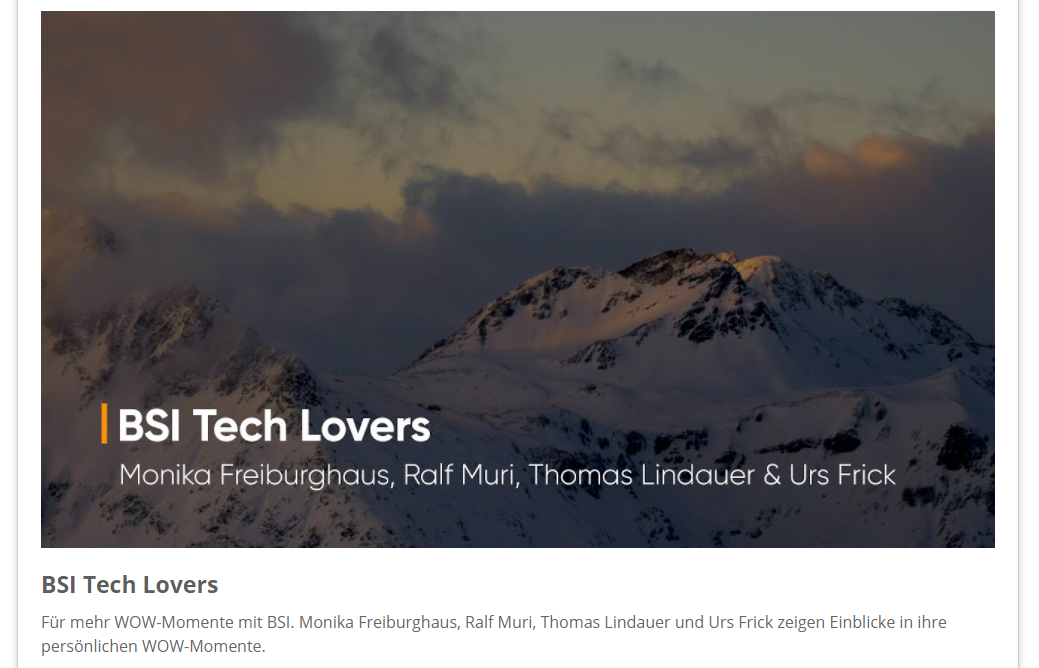

This results in the following content element:

The video part is quite powerful and can be used in various ways:

The image element part can only be placed inside of a <img> or <a> tag. The source is inserted in the src attribute.

It is not possible to omit the image of an image part. Therefore it is mandatory to specify an image in the content editor. Otherwise a validation error will occur.

An arbitrary element which permits the use of a CSS background-image. It places the CSS attribute background-image. The image selection is available as the editor just like with the image part.

A <div> oder <td> element with a table element as a direct child element. The table content is filled according to the editor (including colgroup). Colspan is not supported. On even or odd rows or columns, the CSS class even or odd is placed. The <th> tag is used for header columns, if specified. This part does not support <thead> and <tbody> tags.

An arbitrary element. The attribute data-bsi-iterator can be defined on this element. The attribute data-bsi-iterator-item must be defined on the element or on one of the included elements. This defines the element to be duplicated. If data-bsi-iterator is defined and the iterator does not provide any data, the entire element is removed. Otherwise, only the element to be duplicated is marked with data-bsi-iterator-item.

A text field is used as the editor. The name of the iterator can be placed in this text field.

An arbitrary element. Displays a news item. Within the element, elements with the data-bsi-property attribute can be defined. This attribute may have the following values: image, title, headline, or text. The content of these elements is then replaced accordingly with the value of the selected news item. In that context, elements from property title, headline, and text are mandatory.

If a link in BSI CX is configured into a news snippet, title and image are automatically supplemented with a link. When generating the news list, the following CSS classes are automatically set on a news snippet to permit better styling of the individual elements:

A <form> element. The element must contain a submit button and may also contain a reset button. Those buttons must be <input> elements. In the form configuration, the reset button can be hidden or displayed. In that case, the DOM attribute disabled is set on the input element.

The form element must contain an element with the data-bsi-form-validation attribute, and this attribute must contain an element with the data-bsi-form-validation-item attribute.

Within the element with data-bsi-form-validation, the element with data-bsi-form-validation-item is duplicated for each error in the server-side form validation, and the validation message is inserted as the content of the validation item element.

In addition to the display in the above-described element, a data-bsi-form-validation-message attribute is set for each defective form field. It contains the validation error for the respective field. The attribute can be used to style the field with CSS if there is an error (CSS selector checks for the presence of the attribute) or to display the error message with CSS and/or JavaScript in the respective field.

The following form fields can be marked as mandatory fields in the content editor. If this is done, the required attribute is set in the relevant HTML element. Thus, the mandatory elements are styled using the respective CSS selectors.

To exclude a certain form from BSI CX you set the data-bsi-form-ignore attribute on the form tag. Any form with this marker will be left untouched by BSI CX.

A <div> element. Contains a <label> and an <input> element. In the configuration, the label, initial value, mandatory field, and input type can be defined. The following input types are supported:

To fixate the form field type, the data-bsi-form-field-fixed-type attribute can be used on the element. Doing so allows the setup of a customized date field, for example. The type of the form field is then set and cannot be changed in the content editor.

The attribute data-bsi-hide-required controls whether the mandatory checkbox is visible and editable in the content editor. If the checkbox is not shown, the original state of the required attribute is preserved, as defined by the content element.

In the configuration of form field parts in the design.json three optional text fields can be enabled:

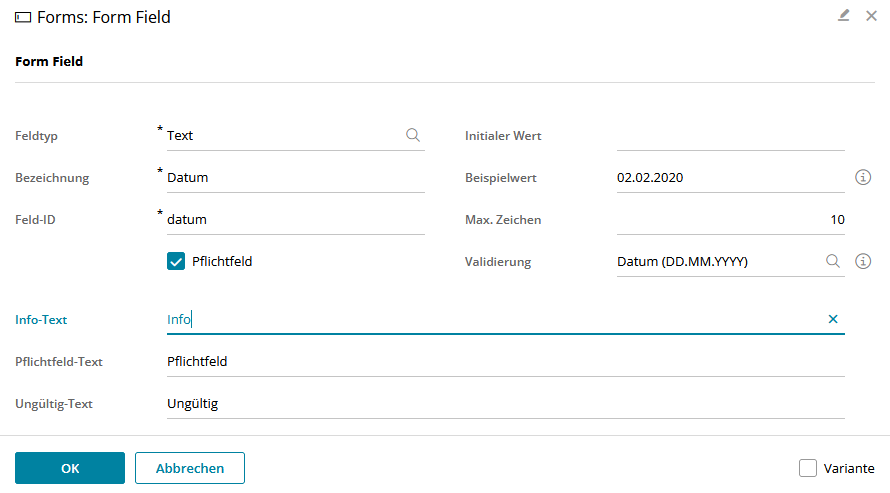

Those three configuration options enable three fields in the editor of the form field part:

The values are written into custom HTML attributes that can be used in the design for client-side form validation.

A <div> element. Contains a <label> and an <input> element with the checkbox type.

The attribute data-bsi-hide-required controls whether the mandatory checkbox is visible and editable in the content editor. If the checkbox is not shown, the original state of the required attribute is preserved, as defined by the content element.

If enabled the data-bsi-form-info-text and data-bsi-form-mandatory-text attributes can be used on this element part. For further information on usage and how to enable them see form-field.

A <div> element. Contains a <label> and a <textarea> element.

The attribute data-bsi-hide-required controls whether the mandatory checkbox is visible and editable in the content editor. If the checkbox is not shown, the original state of the required attribute is preserved, as defined by the content element.

If enabled the data-bsi-form-info-text, data-bsi-form-mandatory-text and data-bsi-form-invalid-text attributes can be used on this element part. For further information on usage and how to enable them see form-field.

A <div> element. Contains a <label> and a <select> element with the elements option. The pre-allocation of the element can be controlled with the data-bsi-value and data-bsi-value-list attributes. The data-bsi-value attribute contains the preal-location, and the values available for selection are defined in the data-bsi-value-list attribute. A line break (\n or \r\n) separates each of those.

To fixate the values that are available for selection, the data-bsi-form-select-fixed-value-list attribute can be set on the element. Then, the list of values cannot be changed in the content editor. Only the preselection can be changed.

The attribute data-bsi-hide-required controls whether the mandatory checkbox is visible and editable in the content editor. If the checkbox is not shown, the original state of the required attribute is preserved, as defined by the content element.

If enabled the data-bsi-form-info-text and data-bsi-form-mandatory-text attributes can be used on this element part. For further information on usage and how to enable them see form-field.

A <div> element. Contains a <label> and a <div> element as a radio group. The radio group is marked with the data-bsi-radio-group attribute. The radio group contains radio items. These are identified with the data-bsi-radio-item attribute and contain a <label> and an <input> element with the radio type. The preselection of this element can be controlled with the data-bsi-value and data-bsi-value-list attributes. Same as the form-select part. The same applies to the data-bsi-form-select-fixed-value-list attribute.

The attribute data-bsi-hide-required controls whether the mandatory checkbox is visible and editable in the content editor. If the checkbox is not shown, the original state of the required attribute is preserved, as defined by the content element.

If enabled the data-bsi-form-info-text and data-bsi-form-mandatory-text attributes can be used on this element part. For further information on usage and how to enable them see form-field.

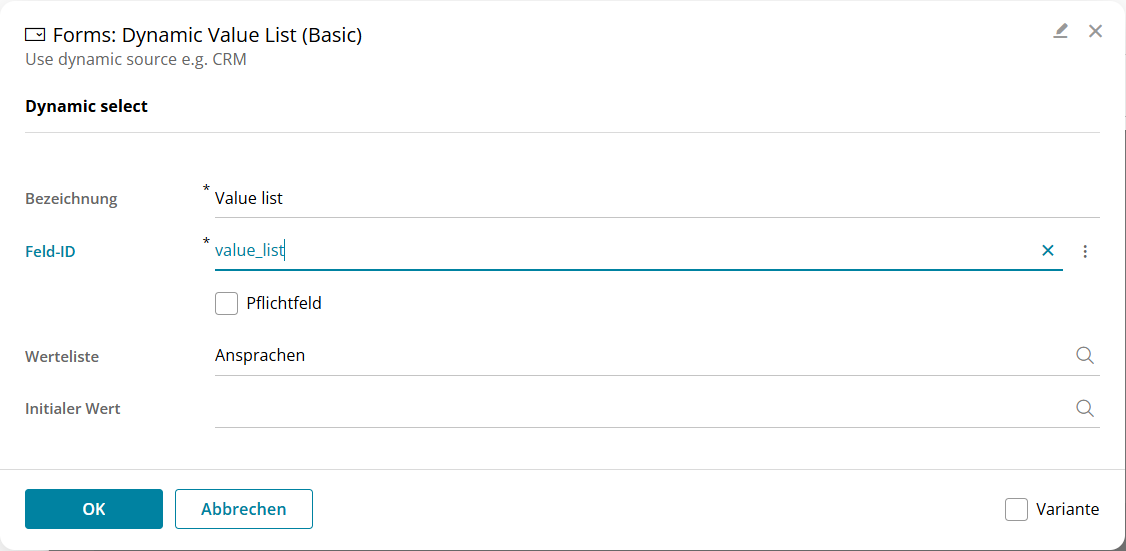

This part offers functionality for the integration of BSI Suite value lists into any HTML form, providing REST endpoints for the purpose of retrieving values from such lists.

The part is defined on the <a> element. As an option, the link content can be set with the data-bsi-link-fixed-inner-html attribute. If this attribute is present, only the href attribute of the link can be edited in the content editor. If the link text is to be placed in a tag within the hyperlink (e.g. in a span next to an <img> tag), the optional data-bsi-link-text-part attribute can be set on the tag.

A <div> element, contains <div> elements with a data-bsi-social-follow attribute. These attributes contain the value of the respective social media service, such as "Facebook", "Twitter", "Pinterest", etc.

The elements with data-bsi-social-follow must have the social-media-item class. This class is used to manage the visibility of each individual social media channel in the editor.

The elements with data-bsi-social-follow must also contain an <a> element. The link href can be preselected with a URL or with CX links in square brackets (e.g., [Facebook]).

The <a> element, in turn, can contain additional elements.

A <div> element, contains <div> elements with data-bsi-social-share. These attributes contain the value of the respective social media service, such as Facebook, Twitter, Pinterest, or even e-mail.

The elements with data-bsi-social-share must have the social-media-item class. This class is used to control the visibility of each individual social media channel in the editor.

The elements with data-bsi-social-share must also contain an <a> element. The link href can be preselected with a URL or with Studio links in square brackets (e.g., [Facebook]).

To share it via e-mail, the content of the href is then a mailto:?subject=(subject.with.title)&body=(description.with.url)

The <a> element, in turn, can contain additional elements.

The URL supports a list of wildcards that are specific to the social share part. When they are issued, all wildcards are automatically URL-encoded. These wildcards cannot be selected in the step configuration in Studio. The following wildcards exist:

The URL provider content element part can be used to load dynamic data inside a story. Inside the content editor, the URL provider part only offers a text field to define its name. When using the content inside your story, each URL provider part will produce a separate outlet. This outlets can be connected to any URL provider (e.g. the Charts Step).

When a story renders the content, the HTML tag with the url-provider part will have a data-bsi-url attribute. This attribute will contain an absolute URL to the BSI CX server, where the data can be requested.

HTML content elements could be included in the design.html by copying the DOM from the content element source file into the body of the design. Changes in the default value took place directly in the DOM of the design. Handlebars content elements work analogous.

The template from the content element source code can be copied into the design.hbs, but two additional steps are necessary. Let’s take the example of a simple text paragraph content element.

The content element consists of a Handlebars template, and a variable context as such:

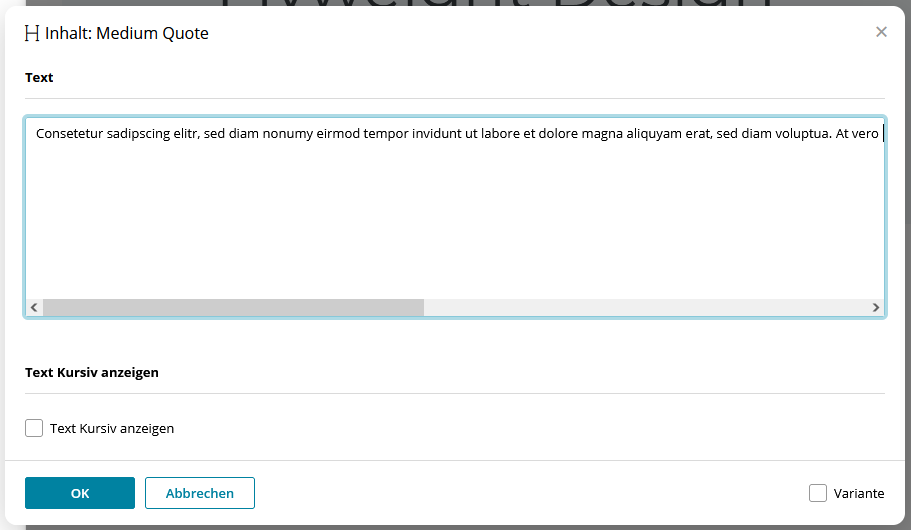

After copying the Handlebars template to design.hbs, we need to supply the values for the variables contained in the element in design-context.json. This is achieved by adding the custom attribute data-bsi-context-scope with a unique name for the element on content element. All variables used within the element need to be prefixed with this unique name. This unique name then also refers to the element in design-context.json:

This template part supplies a text input field, into which the user can input a single line of plain text.

This template part supplies a single multiline input field, into which the user can input plain text.

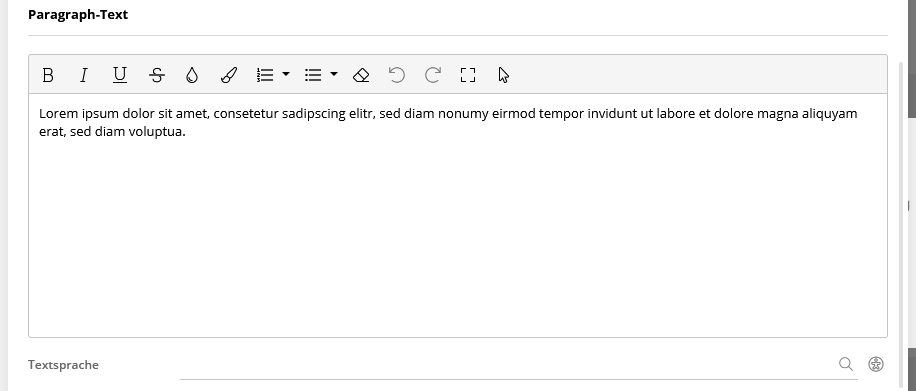

This template part closely mirrors the corresponding formatted-text element part. It provides a configurable HTML WYSIWYG editor.

An template part that provides URL and accessibility information for a link.

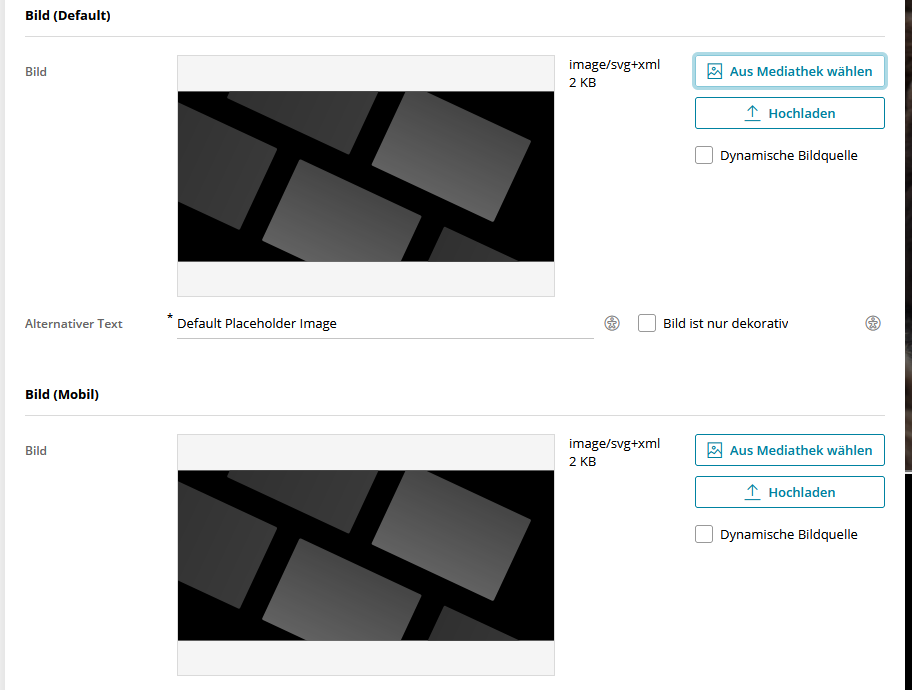

The image template part supplies all values needed to render an image in the content, including accessibility information.

The checkbox template part is mainly used for control-structures in the Handlebars-template. It supplies a simple checkbox element and a boolean value that can be used e.g. for {{#if}}-blocks within the content element.

The option template part is mainly used for control-structures in the Handlebars-template. It allows to define a list of key/value options in the design and provides the key of the option selected by the user in the content editor.

Since the {{#if}} blocks in Handlebars do not support logical expressions, the variable from the option part is usually used with the Handlebars helpers eq and neq. For example such as:

The negation works analogous, just using {{#neq a b}} instead of the {{#eq a b}} shown in the example above.

This Handlebars template part offers functionality for the integration of BSI Suite value lists into any HTML form, providing REST endpoints for the purpose of retrieving values from such lists.

This template part contains a picker for a script from the media library and an optional JSON field for a configuration-object to supply to the script.
